Surface Based Medical Image Analysis

skull Traditionally medical image analysis has tackled problems in 2D images coming from for example X-ray machines or 3D images from computed tomography or magnetic resonance machines. Many algorithms working on volumetric data have been developed. An example is image registration where pre- and post-operative scannings are aligned and compared for the purpose of evaluating surgery outcome. Recently, fast and accurate range scanners have been introduced in the planning and evaluation of for example craniofacial surgery. A typical range-scanner is based on structured light and a stereo-camera setup and the acquisition time is therefore less than a second and no harmful radiation is involved. The natural output of range scanners are 3D surfaces. Currently, my research is based on surface based medical image analysis.

An introduction (in Danish) to some of my research can be seen on Danskernes Akademi.

Statistical Shape Analysis of the Human Ear Canal

ears Hearing aids come in a number of different styles. The smallest of these styles is called CIC (completely in the canal) and it has a number of attractive properties. First of all the small size is cosmetically appealing because a well-produced CIC is as good as invisible in-situ. Secondly, the CIC has some acoustic advantages. The shell of a CIC must have size and shape that allows it to contain a microphone, an amplifier, a loudspeaker, and battery. On the other hand it is desirable to design these components in a way that makes it possible to minimise the size of the final hearing aid.

A statistical shape model of the human ear canal was computed using a set of scanned ear impressions. Eventhough, the training set was rather small it was demonstrated that an anatomically plausible model could be generated and that the major variation in the data could be explained by less than seven modes of variation. The shape model of the ear has later been used as input in the design of in-the-ear devices. It provides information about the maximal variations of the shape of the ear in a standard population.

Statistical Shape and Appearance Analysis

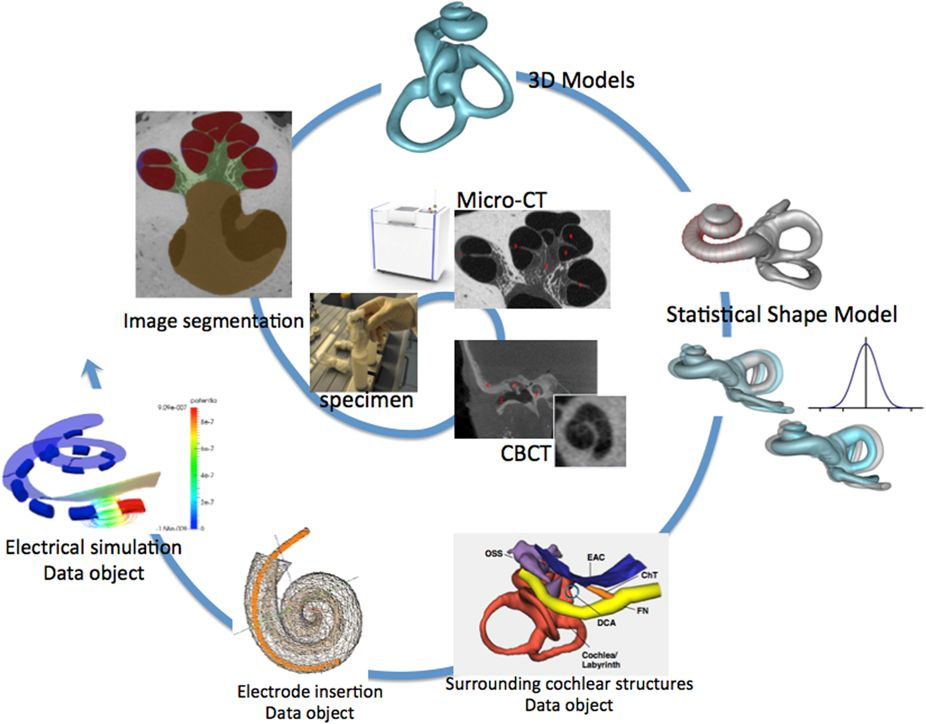

In general, we are doing research within the statistics of shape and appearance and the associated methods. An example is modelling of the human face for early diagnostics of genetically associated disaeases or syndromes. Another example is the shape modelling of the human cochlear for surgical planning as part of the large EU project HEAR-EU. We have also investigated the connection between eye color and structure and the human genetics.

An open database of 3D scans of the human head, ear, and torso

Rasmus 3D head The aim of this project is to generate a database of high-resolution 3D scans of the head and torso of humans. The data will be presented on a web-portal where software to view, manipulate and process the data is also available. The intended users of the data and tools are students and researches working with acoustical modelling. Specifically, the data can for example be used to optimise spatial perception in hearing aids, boom design for headsets, and simulating individual head related transfer functions.

Mathematical modelling of the sound field surrounding the head is an emerging discipline that has shown promise to alleviate some of the difficulties in for example designing and testing the performance of new hearing aid designs. However, current state-of-the arts methods are mostly based on synthetic data and the results are therefore somewhat misleading. The lack of data is mainly due to the difficulty in acquiring real 3D data of the human head and torso. Especially, the 3D geometry of the human ear is very difficult to obtain using traditional 3D acquisition techniques like CT, MR, and laser scanning. Recently, the 3D Laboratory at the school of dentistry at the University of Copenhagen obtained a 3dMD cranial scanner by a donation from the Oticon Foundation. This scanner can be used to capture high quality 3D scans of the head, ear (pinna and part of concha), and torso of humans. The aim of this project is to use the scanner at the 3D laboratory to capture the torso and head geometry of a group of test persons. Furthermore, ear impressions should be taken and scanned so the final and merged data is a precise 3D presentation of torso, head, and the ear canal.

Some possible applications:

  • Simulating the influence of microphone placement in hearing devices
  • Boom design for headsets
  • Simulating head related transfer functions
  • Comparing simulated and measured HRTFs
  • Statistical analysis of the relation between torso+head+ear shape and HRTFs
  • Wind noise simulation for hearing devices
  • Optimal placement of electromagnetic coils in hearing devices
  • Visualization of hearing aid designs for development and for Marketing

The data is published in the OpenHear database.
